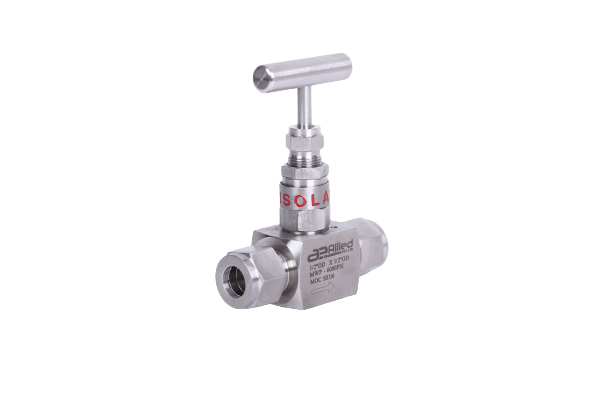

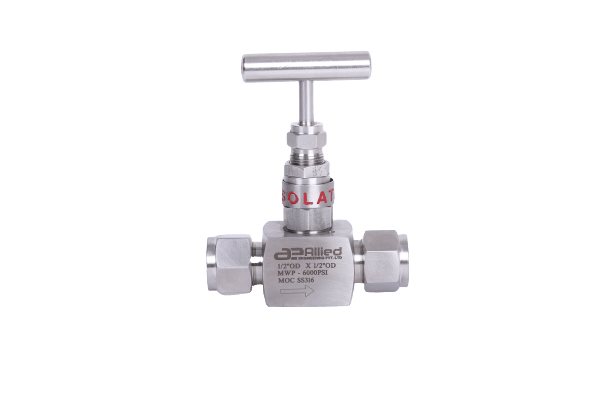

Model No. ANVT

Designed for use with tubes through built in Double ferrule compression fittings for throttling purpose and straight shut off of liquids, gas or vapour service. These needle valves are available with a variety of end connections and stem packing.

Description

Test Pressure
@ 25°C Room Temperature
Hydrostatic : Body – 415 bar(g)
Seat – 415 bar(g)
Pneumatic : Seat – 7 bar(g)
Gland Packing
PTFE : Standard
Graphoil : Temperatures above 200°C
Material
A105, A 479 304, A 479 316,
A182 GR F 316, Monel, Hastelloy, Duplex

Finish

CS zinc plated. SS Natural

Connections
TUBE OD A B C D A/F PART NO.
1/4” / 6mm
65
25
90
14
ANVT-4/ANVT-6M
5/16” / 8mm
65
25
90
16
ANVT-5/ANVT-8M
3/8” / 10mm
65
25
90
17
ANVT-6/ANVT-10M
1/2” / 12mm
70
28
92
22
ANVT-8/ANVT-12M
3/4” / 20 mm
80
30
92
28.5
ANVT-12/ANVT-20M
