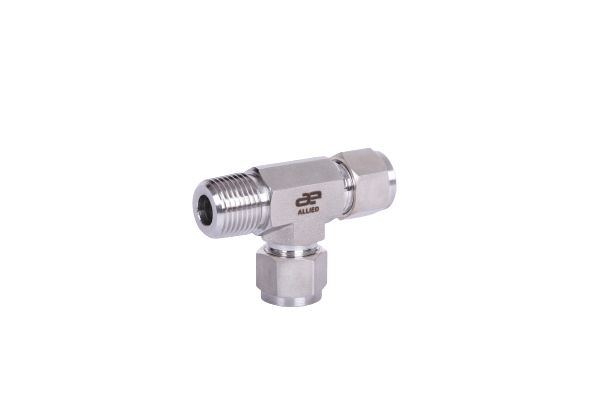

Male Run Tee (Tapered Thread)
For fractional Tube to female NPT thread connection
| TUBE OD | NPT MALE THREAD | DIMENSIONS IN INCH | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| T | P | B | E | F | G | L | Lx | Ly | |
| 1/8 | 1/8 | 0.38 | 0.09 | 7/16 | 7/16 | 1.37 | 0.67 | 0.70 | AMRT-2-2N |
| 1/8 | 1/4 | 0.56 | 0.09 | 9/16 | 7/16 | 1.63 | 0.71 | 0.92 | AMRT-2-4N |
| 3/16 | 1/8 | 0.38 | 0.12 | 7/16 | 1/2 | 1.40 | 0.70 | 0.70 | AMRT-3-2N |
| 1/4 | 1/8 | 0.38 | 0.19 | 1/2 | 9/16 | 1.51 | 0.77 | 0.74 | AMRT-4-2N |
| 1/4 | 1/4 | 0.56 | 0.19 | 9/16 | 9/16 | 1.69 | 0.77 | 0.92 | AMRT-4-4N |
| 5/16 | 1/8 | 0.38 | 0.19 | 9/16 | 5/8 | 1.70 | 0.88 | 0.82 | AMRT-5-2N |
| 3/8 | 1/4 | 0.56 | 0.28 | 5/8 | 11/16 | 1.91 | 0.91 | 1.00 | AMRT-6-4N |
| 3/8 | 3/8 | 0.56 | 0.28 | 13/16 | 11/16 | 2.13 | 1.02 | 1.11 | AMRT-6-6N |
| 1/2 | 3/8 | 0.56 | 0.38 | 13/16 | 7/8 | 2.13 | 1.02 | 1.11 | AMRT-8-6N |
| 1/2 | 1/2 | 0.75 | 0.41 | 7/8 | 7/8 | 2.32 | 1.02 | 1.30 | AMRT-8-6N |
| 5/8 | 1/2 | 0.75 | 0.47 | 15/16 | 1 | 2.48 | 1.10 | 1.38 | AMRT-10-8N |
| 3/4 | 3/4 | 0.75 | 0.62 | 1 1/16 | 11/8 | 2.62 | 1.17 | 1.45 | AMRT-12-12N |
